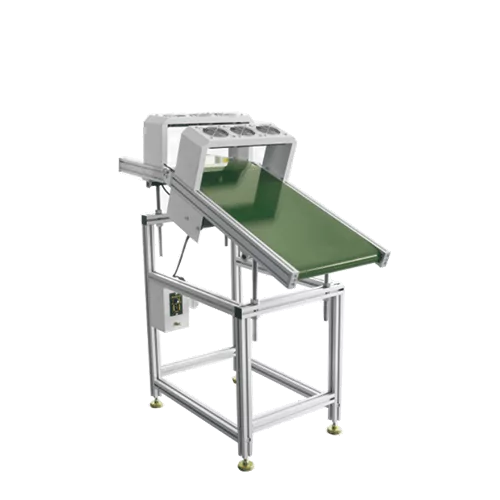

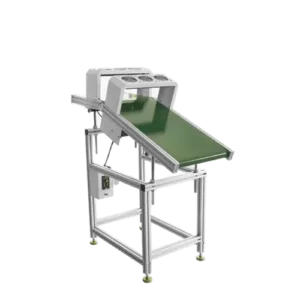

pcb handling smt conveyor solder outfeed conveyor

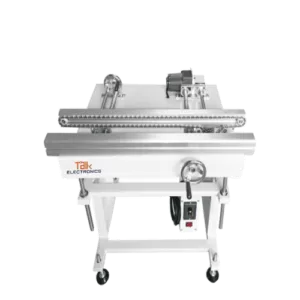

pcb handling smt conveyor solder infeed conveyor

CY-330WI/460WI/445WO 530WO
Wave Solder Conveyor

Feature

  • Stable and solid structure

  • Convey speed and height adjustment

  • Different sizes available upon request

  • Parallel and smooth width adjustment (screw)

  • Minimize transmission clearance between conveyor

  • Select rectangular welding frame or aluminum profile frame optional

Customization is always available, please mark down your need when contact us.

Specification of CY-330WI/460WI/445WO 530WO Wave Solder Conveyor

DescriptionDelivery of PCBs exiting wave soldering machine
Conveyor typeGreen anti-static PVC belt specified
Conveyor speed0.5-20M/min (support customization)
Power supplyAC 110/220 volts; single phase
PowerMax. 200VA
Transport directionL to R/R to L

Dimension of CY-330WI/460WI/445WO 530WO Wave Solder Conveyor

ModelDimension
(LxWxH, mm)		PCB board size (LxWxH, mm)Weight(kg)
CY-330WI800*600* 110050*50-445*33035
CY-460WI800*730*110050*50-530*46045
CY-445WO1200*480* 125050*50-445*33035
CY-530WO1200*730* 110050*50-530*46045
