CY-350L/445L/460L/530L Inspection Conveyor


  • Modular design

  • Variable speed control

  • Compatible SMEMA interface

  • Ergonomic design. make arms rest

  • Weighted design improves stability

  • Inspection mode and automatic mode

  • Customize machine working area according to customer’s requirement

Customization is always available, please mark down your need when contact us.

What is an inspection conveyor?

An inspection conveyor is a type of conveyor system engineered to transport products and materials past automated inspection systems or human inspectors in a manufacturing environment. They enable thorough product quality checks during the manufacturing process.

Importance of quality control in manufacturing processes

Consistent quality control through inspection is vital for manufacturing products that meet specifications. Inspection conveyors provide a reliable method for quality checks without impacting production throughput. They help avoid costs associated with recalls, waste, and customer dissatisfaction.

How inspection conveyors contribute to improved efficiency and productivity

Inspection conveyors eliminate bottlenecks associated with manual inspection processes. Automated inspections enabled by these conveyors also reduce human error and minimize labor requirements. This leads to enhanced productivity and efficiency in manufacturing.

History of Inspection Conveyors

Early development of inspection conveyors

Primitive belt conveyors were used for visual inspection of products in early 20th century assembly lines. But dedicated inspection conveyor systems emerged in the 1960s when automation and quality control became more critical in manufacturing.

Evolution of inspection conveyors over time

Over decades, inspection conveyor capabilities evolved from basic visual checks to incorporating automated sensors, imaging, weighing, and rejection systems. Conveyor speeds, lighting, configurations also improved over time to accommodate fast-paced production environments.

Current state of the inspection conveyor market

The global inspection conveyor market size was valued at USD 1.1 billion in 2021. Rising adoption of automation, growth of the food processing industry, and demand for quality assurance are driving steady growth of 5.8% CAGR forecast during 2022 – 2030.

Understanding Inspection Conveyors

Definition and basic components

Inspection conveyors consist of a conveyor belt and motor assembly engineered to transport products at a controlled speed past inspection systems. Key components include conveyor frame, belting material, motor and drive system, lighting, and reject diversion mechanism.

Types of inspection conveyors

Main types are belt, roller, overhead, floor, and pocket conveyors. Configurations like straight, spiral, zig-zag or serpentine are used based on space and inspection needs. Specialized conveyors also exist for applications like metal detection, leak testing etc.

Working principle and operation

Products are automatically fed onto the conveyor from a production/packaging line. The conveyor transports items past inspection systems like checkweighers, vision systems, metal detectors etc. which check for defects and generate a reject signal if needed. Defective items are automatically diverted.

Benefits of Using Inspection Conveyors

Enhanced product quality assurance

Automated inline inspection enabled by conveyors allows 100% inspection versus periodic sample checks. This catches defects early, preventing rework/recalls.

Increased production throughput

Continuous flow of items via conveyors eliminates stoppages associated with batch inspection processes. This aids higher throughput.

Reduction in manual labor and human error

Automated inspection reduces labor costs associated with dedicated quality teams. Objective machine-based checks also minimize errors.

Compliance with industry regulations and standards

Inspection conveyors help manufacturers comply with quality standards like ISO, food/pharma regulations etc. by facilitating checks.

Key Features of Inspection Conveyors

Conveyor belt materials and design

Belts utilize cut/abrasion-resistant materials like rubber, PVC, urethane. Smooth surfaces allow easy cleaning. Modular plastic chain belts also used in some food applications.

Adjustable speed and control options

Conveyor speeds are adjustable to synchronize with production volumes and inspection process parameters. Programmable logic controllers allow implementing custom logic.

Integrated lighting and imaging systems

Lighting like fluorescent, LED strips integrated for clearer product visualization. High resolution cameras capture images for automated visual inspection.

Reject system for faulty products

Pusher arms, air blasts, trap doors etc. deployed along conveyor length to reliably divert defective products for removal. Reject confirmation sensors are used.

Industries and Applications

Food and beverage industry

Inspection for metal contaminants, glass shards, vision inspection of labels/packaging, and check weighing of packets are common applications.

Pharmaceutical industry

Leak detection, verification of bottle fill volume, label inspection, and dimensional checks are carried out via these conveyors.

Automotive industry

Parts like gears, nuts/bolts, fasteners, springs etc. are automatically visually inspected and weighed on conveyors.

Electronics and semiconductor manufacturing

Integrated circuit boards, display panels, and assembled devices undergo automated optical and electrical tests on inspection conveyors.

Packaging industry

Checkweighing, seal integrity verification, label/code printing checks are performed using tailor-made inspection conveyor solutions.

Choosing the Right Inspection Conveyor

Evaluating specific manufacturing needs

Required throughput, product specifications, existing systems in the production line, available space etc. are considered.

Considering product size and weight

Load capacity, belt width, conveyor speeds are selected based on the product dimensions and weight.

Customization options

Specialized belting materials, customized widths/lengths, encoder-based variable speed control, rejection systems etc. can be chosen.

Budget and ROI considerations

While customized systems are costlier, the ROI from higher throughput, lower scrap rate and prevention of recalls justify the investment.

Installation and Maintenance

Pre-installation preparations

Site readiness in terms of available power, physical clearances, integration needs with upstream/downstream processes etc. must be ensured.

Installation process and best practices

Manufacturer recommended processes are followed to assemble and fit the conveyor. Instrument calibration, direction of travel, safety checks are completed before commissioning.

Regular maintenance and troubleshooting tips

Belt tension, alignment, bearings, motors and reject systems are periodically inspected. Issues like belt wear, jamming and power failures are swiftly addressed.

Comparing Inspection Conveyors with Alternative Quality Control Methods

Manual inspection processes

Manual inspection is slow, prone to error, labor-intensive and unable to handle high volumes. It can only serve as supplemental sampling of automated inspection.

Automated quality control systems

Standalone systems like checkweighers, X-ray, and vision systems are limited by batch size handling capability. Only inspection conveyors enable a smooth flow.

Advantages and limitations of each method

While manual inspection provides human judgement, automation enables objective and rapid checks. Using both complementarily maximizes quality control.

Future Trends of Inspection Conveyors

Technological advances

Emerging trends include integrating AI-based vision systems, big data analytics, and industrial IoT connectivity for smart quality management.

New applications

Continued growth of the e-commerce sector will drive demand for inspection conveyors in parcel handling centers for fraud prevention and checking package content.

Growing demand

With globalization and growth of manufacturing hubs worldwide, the adoption of inspection conveyors across industries is forecast to grow at nearly 6% CAGR through 2030.


Specification of CY-350L/445L/460L/530L Inspection Conveyor

DescriptionOperator testing station: transmission, detection, and components manual plug-in
Belt typeRound belt / flat belt
Conveyor speed0.5-20M/min (support customization)
Power supplyAC 110/220 volts; single phase
PowerMax. 100VA
Transport height900 +/- 20mm (support customization)
Transport directionL to R/R to L

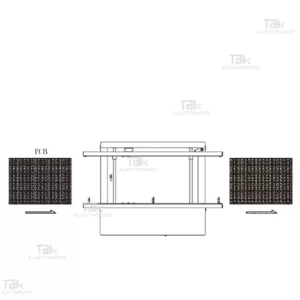

Dimension of CY-350L/445L/460L/530L Inspection Conveyor

(LxWxH, mm)
PCB board size
(LxW, mm)


Recap of the importance of inspection conveyors in quality control

Inspection conveyors enable automated and streamlined quality control in manufacturing, minimizing errors and preventing losses from recalls and wastage.

Emphasizing their role in streamlining manufacturing processes

These systems seamlessly integrate into production environments and enhance productivity through rapid, reliable inspection without compromising throughput.

Encouraging industries to adopt inspection conveyors for improved efficiency and product quality

Inspection conveyors provide unmatched benefits over manual inspection and standalone systems. Adopting these systems is crucial for manufacturers to remain competitive through consistent product quality and lean operations.
