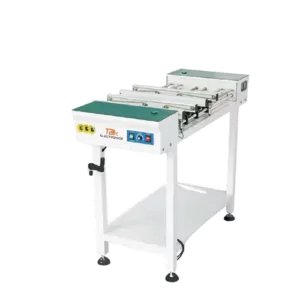

CY-250DR/330DR Dual Rail Conveyor
Feature
Variable speed control
Compatible SMEMA interface
Weighted solid design improves stability
Inspection mode and automatic mode offered

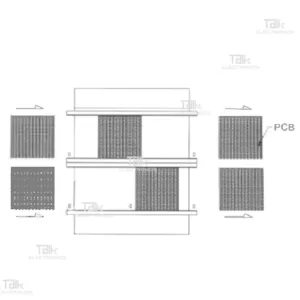

Simultaneously loading dual PCB board on SMT line
Precision laser and durable cutting stainless steel structure
Customization is always available, please mark down your need when contact us.
Introduction to Surface Mount Technology
SMT allows components to be directly mounted onto the PCB surface rather than through holes. This enables:
Miniaturization of PCB assemblies
Automated mass production
Improved reliability with fewer solder joints
Higher component densities
SMT is indispensable for modern electronics manufacturing.
Boosting Efficiency with Dual Rail SMT Loaders and Unloaders
Surface mount technology (SMT) has revolutionized electronics assembly, enabling automated component placement onto PCBs. Efficient loading and unloading of PCBs to/from SMT machines is critical for optimizing production. Dual rail SMT loaders and unloaders deliver enhanced flexibility and throughput versus single rail systems. This article provides a comprehensive guide to dual rail SMT loaders/unloaders.
Role of SMT Loaders and Unloaders
SMT loaders feed PCBs into the pickup positions of SMT machines. SMT unloaders then remove assembled PCBs for downstream processes.
Efficient loading/unloading maximizes SMT machine utilization. Automated dual rail systems excel at this compared to manual loading.
History of Dual Rail SMT Loaders/Unloaders
Early SMT lines used simple single rail conveyor systems. But as SMT volumes increased, more automated solutions were needed.
Dual rail loaders/unloaders emerged in the 1990s to meet rising demand. They doubled throughput compared to single rail systems.
Advancements in conveyor technology, precision part handling, and machine vision have further improved dual rail machines.
Single Rail vs Dual Rail SMT Loaders/Unloaders
Single Rail:
Uses one conveyor lane to transport PCBs sequentially into/out of the SMT machine.
Dual Rail:
Uses two independently controlled conveyors – one for loading, one for unloading.
This parallel operation enables simultaneous loading and unloading, boosting throughput.
Types of Dual Rail SMT Loaders/Unloaders
Linear Dual Rail:
Linear conveyors provide direct in-line transfer to the SMT machine.
Carousel Dual Rail:
Rotary conveyors allow greater buffering capacity.
Overhead Dual Rail:
Elevated conveyors save floorspace.
Closed-Loop Dual Rail:
Continuous loop conveyors for non-stop production.
Enhanced Efficiency and Throughput
Dual rail loaders improve production efficiency:
Parallel loading/unloading doubles hourly output
Continuous operation reduces downtime
Independent rails prevent bottlenecking
Greater buffering capacity smoothens workflow
This results in significant throughput gains over single rail systems.
Advantages Over Single Rail Systems
Higher Speed: Simultaneous loading/unloading
Flexibility: Different PCBs can be on each rail
Quality: Separate rails prevent interference
Compact: Reduced footprint with greater output
Scalable: Add more rails to boost capacity
Dual rails deliver flexibility and doubled output in a small footprint.
Machine Vision Systems in Dual Rail SMT Loaders
Machine vision allows automated optical inspection in dual rail SMT loaders:
Verifies PCB presence and correct positioning
Checks for skewed boards requiring adjustment
Detects damaged or incorrect boards prior to loading
Provides feedback for precision alignment
This prevents loading errors and enhances quality control.
Benefits of Dual Rail SMT Loaders and Unloaders
Higher Productivity: Faster SMT machine loading improves output.
Reduced Downtime: Continuous loading/unloading eliminates gaps.
Flexibility: Different board types can be run simultaneously.
Compact Footprint: Smaller than equivalent single rail systems.
Enhanced Quality: Separate rails prevent interference.
Future Scalability: Additional rails can be added as needed.
Labor Savings: Reduced manual loading lowers long-term costs.
Optimized Space: Small footprint saves factory floor space.
Best Practices for Operation
To utilize dual rail SMT loaders/unloaders effectively:
Perform regular maintenance and calibration
Clean conveyor belts and check for wear
Ensure proper lubrication of moving parts
Setup optimal rail adjustment for different PCBs
Integrate appropriately with upstream/downstream processes
Train employees thoroughly on proper operation
Institute safety measures against common hazards
Analyze data to identify potential process improvements
Correct implementation is vital for maximizing gains.
Choosing the Right Dual Rail SMT Loader/Unloader
Consider the following when selecting a dual rail loader/unloader:
Production volume requirements
PCB sizes and types
Floorspace constraints
SMT machine model and layout
Buffer space needed
Component shape/fragility
Expected production growth
Vision system needs
Available budget
Aligning with current and future needs ensures an optimal match.
Tips for Maximizing Productivity
To optimize dual rail loader/unloader productivity:
Strategically place near the SMT machine
Design efficient loading/unloading workflows
Train employees on proper operation and safety
Perform regular preventive maintenance
Continuously monitor and analyze production data
Make process adjustments based on actionable insights
Upgrade to newer controller software as available
Leverage IIoT connectivity for smart factory integration
Every % improvement in utilization results in major throughput gains.
Common Challenges and Solutions
Misaligned Boards: Use board stops and vision system to ensure alignment.
Jamming: Check for obstructions; increase conveyor belt tension.
PCB Scratches: Fix belt gaps causing board dragging.
Skewed Boards: Adjust rail guides; check vision system.
Electrical Failures: Inspect connections; check for loose wiring.
Poor Throughput: Optimize workflow; add rail buffers if needed.
Addressing problems promptly is key to maximize uptime.
Safety Measures and Precautions
Dual rail systems can pose some safety risks like:
Getting caught in moving conveyors
Pinch points at grippers or conveyor belts
ESD risks during maintenance
Electrical hazards from improper wiring
Safety measures should include:
Interlocked guard doors
Emergency stop buttons
Warning labels at hazardous areas
Reduced voltage for troubleshooting
Lockout/tagout procedures
Personnel training on risks
Case Studies
Company A saw their SMT line output increase by 30% after switching to dual rail loaders/unloaders.
Company B was able to reassign 3 loading personnel after implementing automated dual rail systems.
Company C reduced SMT downtime by over 40 hours per month by addressing bottlenecks with an additional set of dual rail unloaders.
Real-world examples prove dual rail systems deliver significant benefits.
Specification of CY-250DR/330DR Dual Rail Conveyor
| Description | Operator testing station of PCB assembly equipment |
|---|---|
| Belt type | Round belt/flat belt |
| Conveyor speed | 0.5-20M/min (support customization) |
| Power supply | AC 110/220 volts; single phase |
| Power | Max. 100VA |
| Transport height | 900 +/- 20mm (support customization) |
| Transport direction | L to R/R to L |
Dimension of CY-250DR/330DR Dual Rail Conveyor
| Model | Dimension (LxWxH, mm) | PCB board size (LxW,mm) | Weight(kg) |
|---|---|---|---|
| CY-250DR | 500*1046*900 | 50*50-330*250 | 80 |
| CY-330DR | 1000*1046*900 | 50*50-330*250 | 95 |
Conclusion
With exponential gains in throughput and efficiency compared to single rail systems, dual rail SMT loaders and unloaders are a strategically smart investment for electronics manufacturers. Their flexible dual conveyor configuration enables simultaneous loading and unloading without bottlenecking. By following best practices around selection, installation, operation, maintenance, and safety, manufacturers can leverage dual rail systems to maximize SMT productivity and quality. As SMT production volumes continue rising, these automated solutions will become increasingly vital.
