Circuit Board Coating Machine – CC980

By using the best configurations, the CC-980 has the highest working efficiency among the three models. And it can effectively coat the edge of the equipment evenly, which is able to eliminate the shadow effect of spraying. Moreover , it has a high speed, reliable, and stable transportation and control system with intelligent automatically adjustment function.

As compared to the other two models, it added another 2 axis motion of selective conformal coating that are the unique valve rotation which can realize 360 degree rotation and valve tilt system which enable inclined at 45 degree maximally. Thus, it ensures there is no dead angle when coating. Plus, it equipped with 2 detection cylinder drives, which improved the coating quality as well.

Customization is always available, please mark down your need when contact us.

Features of Circuit Board Coating Machine – CC980

1. 4-Axis Covered Coating System

  • The four axes of X, Y, Z and U are all driven by servo motors, which ensures a highly accurate positioning performance.
  • Equipped with additional valve rotation and tilt structure, realizing inclined spraying which can make the bottom of the components coated, and improve the anti-corrosion effect.
  • The coating valve can be rotated 360°.
  • Needle dispensing valve and ace rose dispensing valve can be tilted 45°.

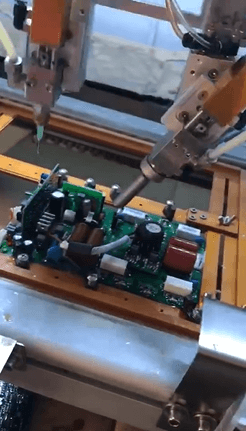

pcb conformal coating selective conformal coaitng machine feature fully covered coating system

2. Tight Spray Valve Structure

  • Used of the latest technology that oriented in Germany, it achieves a high edge definition, no splashing, no block-up, stable and durable, and ensures continuously output of glue.

3. Four Spraying Valves Applicable

  • The model can be equipped with maximum 4 spraying valves at the same time, which dramatically improved the production capacity of coating process.
pcb conformal coating selective conformal coaitng machine feature 4 spraying vavles applicable

4. Feeding and Cleaning system

  • 10L stainless steel inner tank with mixing function feeding barrel.
  • Timed directional cleaning valve to ensure the valve body is clean.
  • Standard 2L cleaning bucket.

Specification of Circuit Board Coating Machine – CC980

ModelCC-980
Equipment PlatformT20 mm steel plate chrome plated
Control MethodIndustrial computer + motion control card
Operating MethodComputer control
Programming ModeManual teaching
Running Programming Storage QuantityMore than 1000
PCB Transfer Height920 +/- 20mm
PCB Width Range50 - 450mm
Transfer DirectionL to R (R to L)
Adjust the Driving MethodStepper motor + double precision screw drive
Adjustment MethodIntelligent automatic adjustment
Transmission Motor2 stepper motors
Transportation Speed0-5000mm/min
X.Y-axis Drive ModeJapan Fuji servo motor + precision screw module drive
X.Y-axis Maximum Running Speed800mm/s
X.Y-axis Positioning Accuracy+/- 0.02mm
Z/U-axis Drive ModeJapan Fuji servo motor + precision screw module drive
Z/U-axis Positioning Accuracy+/- 0.02mm
Z- axis Maximum Running Speed300mm/s
Valve Up and Down2 slide cylinder drives
Valve Detection2 detection cylinder drives
Valve Rotation Angle+/- 180 degree
Valve Tilt Angle0-45 degree
Valve Type1 small mist flower valve, 1 dispensing valve
PCB Board SizeMax. W450mm*L450mm
Max. PCB Component Height+/- 100mm
Atomized Spray Width5-8mm
Atomized Spray Thickness0.03-1mm
Needle Nozzle Size of Needle Dispensing Valve0.8mm
Edge Definition+/-0.5mm
Communication PortSMEMA
Tank VolumeA 10 L stainless steel inner bucket with stirring function pressure tank + A 2L stainless steel cleaning pressure tank
Cleaning FunctionThe equipment comes with a cleaning function
Lighting SectionEquipment comes with lighting source
Detection PartThe equipment comes with a UV detection light source
Power SupplyAC220V 750W 50HZ
Gas Source4-6kgf/cm2
Exhaust Volume900m3/H(150*1)
Total Power1.8KW
Option ItemsBar Code Scanning Function; CCD Version Positioning Function; Electric Amplitude Modulation Method

Dimension of Circuit Board Coating Machine – CC980

Dimension (LxWxH, mm)1060x1200x1700
Weight (Kg)500
