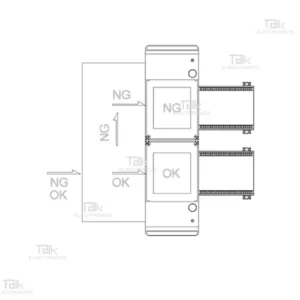

diagram horizontal ng or ok unloader

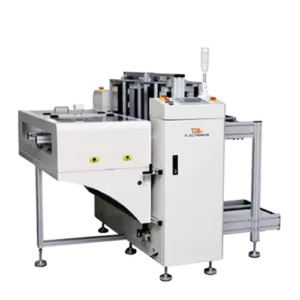

UD-250/330/390/460 NG OK Auto Unloader

Feature

  • Different sizes available upon request

  • It’s applied to receive the NG or OK boards after the AOI or SPI

  • Full closed design make sure the highest operation protection level

  • Top cover can be opened for easy access to hardware during maintenance

Customization is always available, please mark down your need when contact us.

Specification of UD-250/330/390/460 NG OK Auto Unloader

DescriptionUnloading boards after AOI
Number of magazineUpper conveyor: 1 magazine
lower conveyor: 1 magazine
Magazine replace timeApprox. 30 seconds (support customization)
Indexing pitch10, 20, 30, 40mm (support customization)
Power supplyAC 110/220 volts; single phase
PowerMax. 300VA
Air pressure and consumption4-6 bar; max. 10ltr/min
Transport height900 +/- 20mm (support customization)
Transport directionL to R/R to L

Dimension of UD-250/330/390/460 NG OK Auto Unloader

ModelDimension
(LxWxH, mm)		PCB board size
(LxW, mm)		Magazine size
(LxWxH, mm)		Weight(kg)
UD-250NG1800*1435*125050*50-330*250355*320*563310
UD-330NG2065*1690*125050*50-445*330460*400*563340
UD-390NG2330*1810*125050*50-530*390535*460*563370
UD-460NG2330* 1950* 125050*50-530*460535*530*563400
