Dual-rail SMT Loader and Unloader2023-08-30T09:49:36+00:00

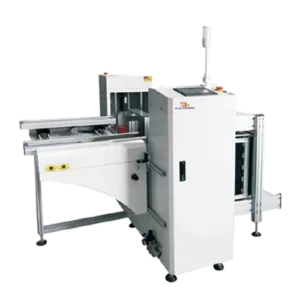

LD / UD model Dual-rail SMT Loader & Unloader


  • Panasonic PLC control system

  • Special sheet-metal and aluminum-alloy construction

  • Owning automatic diagnosing fault and display code function

  • The special pneumatic structure design ensures zero PCB breakage

  • The upper part of the bin has 4 kinds of PITCH selections, which can set the step distance of the feeding PCB board

  • Dual line style design to double increase SMT productivity efficiency which allow you to load two PCB boards at the same time

Customization is always available, please mark down your need when contact us.

Boosting Efficiency with Dual Rail SMT Loaders and Unloaders

Surface mount technology (SMT) has revolutionized electronics assembly, enabling automated component placement onto PCBs. Efficient loading and unloading of PCBs to/from SMT machines is critical for optimizing production. Dual rail SMT loaders and unloaders deliver enhanced flexibility and throughput versus single rail systems. This article provides a comprehensive guide to dual rail SMT loaders/unloaders.

Introduction to Surface Mount Technology

SMT allows components to be directly mounted onto the PCB surface rather than through holes. This enables:

  • Miniaturization of PCB assemblies
  • Automated mass production
  • Improved reliability with fewer solder joints
  • Higher component densities

SMT is indispensable for modern electronics manufacturing.

Role of SMT Loaders and Unloaders

SMT loaders feed PCBs into the pickup positions of SMT machines. SMT unloaders then remove assembled PCBs for downstream processes.

Efficient loading/unloading maximizes SMT machine utilization. Automated dual rail systems excel at this compared to manual loading.

History of Dual Rail SMT Loaders/Unloaders

Early SMT lines used simple single rail conveyor systems. But as SMT volumes increased, more automated solutions were needed.

Dual rail loaders/unloaders emerged in the 1990s to meet rising demand. They doubled throughput compared to single rail systems.

Advancements in conveyor technology, precision part handling, and machine vision have further improved dual rail machines.

Single Rail vs Dual Rail SMT Loaders/Unloaders

Single Rail: Uses one conveyor lane to transport PCBs sequentially into/out of the SMT machine.

Dual Rail: Uses two independently controlled conveyors – one for loading, one for unloading.

This parallel operation enables simultaneous loading and unloading, boosting throughput.

Types of Dual Rail SMT Loaders/Unloaders

Linear Dual Rail: Linear conveyors provide direct in-line transfer to the SMT machine.

Carousel Dual Rail: Rotary conveyors allow greater buffering capacity.

Overhead Dual Rail: Elevated conveyors save floorspace.

Closed-Loop Dual Rail: Continuous loop conveyors for non-stop production.

Enhanced Efficiency and Throughput

Dual rail loaders improve production efficiency:

  • Parallel loading/unloading doubles hourly output
  • Continuous operation reduces downtime
  • Independent rails prevent bottlenecking
  • Greater buffering capacity smoothens workflow

This results in significant throughput gains over single rail systems.

Advantages Over Single Rail Systems

Higher Speed: Simultaneous loading/unloading

Flexibility: Different PCBs can be on each rail

Quality: Separate rails prevent interference

Compact: Reduced footprint with greater output

Scalable: Add more rails to boost capacity

Dual rails deliver flexibility and doubled output in a small footprint.

Machine Vision Systems in Dual Rail SMT Loaders

Machine vision allows automated optical inspection in dual rail SMT loaders:

  • Verifies PCB presence and correct positioning
  • Checks for skewed boards requiring adjustment
  • Detects damaged or incorrect boards prior to loading
  • Provides feedback for precision alignment

This prevents loading errors and enhances quality control.

Benefits of Dual Rail SMT Loaders and Unloaders

Higher Productivity: Faster SMT machine loading improves output.

Reduced Downtime: Continuous loading/unloading eliminates gaps.

Flexibility: Different board types can be run simultaneously.

Compact Footprint: Smaller than equivalent single rail systems.

Enhanced Quality: Separate rails prevent interference.

Future Scalability: Additional rails can be added as needed.

Labor Savings: Reduced manual loading lowers long-term costs.

Optimized Space: Small footprint saves factory floor space.

Best Practices for Operation

To utilize dual rail SMT loaders/unloaders effectively:

  • Perform regular maintenance and calibration
  • Clean conveyor belts and check for wear
  • Ensure proper lubrication of moving parts
  • Setup optimal rail adjustment for different PCBs
  • Integrate appropriately with upstream/downstream processes
  • Train employees thoroughly on proper operation
  • Institute safety measures against common hazards
  • Analyze data to identify potential process improvements

Correct implementation is vital for maximizing gains.

Choosing the Right Dual Rail SMT Loader/Unloader

Consider the following when selecting a dual rail loader/unloader:

  • Production volume requirements
  • PCB sizes and types
  • Floorspace constraints
  • SMT machine model and layout
  • Buffer space needed
  • Component shape/fragility
  • Expected production growth
  • Vision system needs
  • Available budget

Aligning with current and future needs ensures an optimal match.

Tips for Maximizing Productivity

To optimize dual rail loader/unloader productivity:

  • Strategically place near the SMT machine
  • Design efficient loading/unloading workflows
  • Train employees on proper operation and safety
  • Perform regular preventive maintenance
  • Continuously monitor and analyze production data
  • Make process adjustments based on actionable insights
  • Upgrade to newer controller software as available
  • Leverage IIoT connectivity for smart factory integration

Every % improvement in utilization results in major throughput gains.

Common Challenges and Solutions

Misaligned Boards: Use board stops and vision system to ensure alignment.

Jamming: Check for obstructions; increase conveyor belt tension.

PCB Scratches: Fix belt gaps causing board dragging.

Skewed Boards: Adjust rail guides; check vision system.

Electrical Failures: Inspect connections; check for loose wiring.

Poor Throughput: Optimize workflow; add rail buffers if needed.

Addressing problems promptly is key to maximize uptime.

Safety Measures and Precautions

Dual rail systems can pose some safety risks like:

  • Getting caught in moving conveyors
  • Pinch points at grippers or conveyor belts
  • ESD risks during maintenance
  • Electrical hazards from improper wiring

Safety measures should include:

  • Interlocked guard doors
  • Emergency stop buttons
  • Warning labels at hazardous areas
  • Reduced voltage for troubleshooting
  • Lockout/tagout procedures
  • Personnel training on risks

Case Studies

Company A saw their SMT line output increase by 30% after switching to dual rail loaders/unloaders.

Company B was able to reassign 3 loading personnel after implementing automated dual rail systems.

Company C reduced SMT downtime by over 40 hours per month by addressing bottlenecks with an additional set of dual rail unloaders.

Real-world examples prove dual rail systems deliver significant benefits.


Specification of LD / UD model Dual-rail SMT Loader & Unloader

(LxWxH, mm)
PCB board size
(Lxw, mm)
Magazine size
(LxWxH, mm)

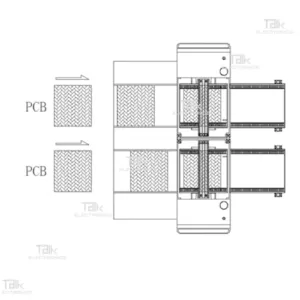

Dimension of LD / UD model Dual-rail SMT Loader & Unloader

DescriptionUnloading PCBs in dual-rail
Number of magazineUpper conveyor: 1 magazine
lower conveyor: 1 magazine
Magazine replace timeApprox. 30 seconds (support customization)
Indexing pitch10, 20, 30, 40mm (support customization)
Power supplyAC 110/220 volts; single phase
PowerMax. 300VA
Air pressure and consumption4-6 bar; max. 10ltr/min
Transport height900 +/- 20mm (support customization)
Transport directionL to R/R to L


With exponential gains in throughput and efficiency compared to single rail systems, dual rail SMT loaders and unloaders are a strategically smart investment for electronics manufacturers. Their flexible dual conveyor configuration enables simultaneous loading and unloading without bottlenecking. By following best practices around selection, installation, operation, maintenance, and safety, manufacturers can leverage dual rail systems to maximize SMT productivity and quality. As SMT production volumes continue rising, these automated solutions will become increasingly vital.


Is operator training needed for these systems?2023-08-30T10:03:11+00:00

Proper training on equipment operation, workflow, and safety is highly recommended before use.

Is special operator training needed?2023-08-30T08:56:26+00:00

Proper training on setup, operation, maintenance, and safety procedures is highly recommended.

Can delicate components be handled without damage?2023-08-30T08:54:57+00:00

Yes, with proper adjustment of conveyor speed and rail alignment.

How do dual rail systems optimize space compared to single rail?2023-08-30T08:48:11+00:00

The compact footprint provides greater throughput per square foot of floorspace.

What maintenance is required on dual rail loaders?2023-08-30T08:47:31+00:00

Regular cleaning, belt tensioning, conveyor lubrication, visual inspections, and preventative maintenance.

Can dual rail systems support high-volume SMT lines?2023-08-30T08:46:43+00:00

Yes, the parallel operation provides the throughput needed for high-volume production.

How does machine vision benefit dual rail loading?2023-08-30T08:46:09+00:00

It enables automated inspection for errors, verification of position, and precision alignment.

What factors should be considered when selecting a dual rail loader?2023-08-30T08:45:37+00:00

Key aspects are production volume, PCB sizes/types, machine layout, buffer space needed, and budget.

How do dual rail loaders handle varying board sizes?2023-08-30T08:45:01+00:00

Adjustable rail widths and automated resize features allow accommodating different sizes.

Can different PCBs be on the dual rails simultaneously?2023-08-30T08:44:26+00:00

Yes, the independent rails enable loading/unloading of different PCBs concurrently.

What are the differences between single vs. dual rail systems?2023-08-30T08:42:56+00:00

Single rail loads/unloads PCBs sequentially, while dual rails operate simultaneously for 2x throughput.
