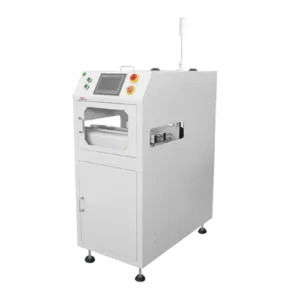

LD 330V / 460V Automatic Vacuum Loader Unloader

Feature

  • Minimize clearance between conveyor

  • Parallel and smooth width adjustment (screw)

  • Smooth and precise translation (stepper motor)

  • Minimize transmission clearance between conveyor

  • Special design of guide rail aluminum slot to prevent board getting stuck.

  • Adjustable position of the suction nozzle to ensure the circuit boards is clamped

  • The vacuum loader structure is fully enclosed to ensure the safe level of operation

  • The machine size can be specify and the main body is welded by sheet metal bending

Customization is always available, please mark down your need when contact us.

The Efficient Material Handling Solution : Automatic Vacuum Loader Unloaders

Efficient material handling is the lifeline of manufacturing, enabling optimized production workflows. Manual material handling can be tedious, slow, and error-prone. Automatic vacuum loader unloaders provide a versatile solution for streamlined material movement. This article explores automatic vacuum loader unloaders, their working, benefits, selection, optimization, challenges, and future trends.

Material handling involves moving raw materials, work-in-process, and finished goods within a facility. Efficient handling is crucial for:

Smoother workflow between processes

Reduced risk of product damage

Lower operational costs

Improved worker safety and ergonomics

Automatic vacuum loader unloaders deliver these benefits and more.

Understanding Automatic Vacuum Loader Unloaders

Automatic vacuum loader unloaders use vacuum suction to securely pick, move, and place materials as needed between production processes.

Key advantages over manual handling:

Faster and continuous loading/unloading

Reduced labor requirements

Gentler handling for delicate items

Consistent quality with minimal errors

Materials Handled Using Vacuum

Vacuum automation is suitable for handling:

Plastic, metal, and electronic components

Glass, ceramic, and stone materials

Boards, panels, and laminated sheets

Fabrics, leather, and textiles

Food products

Almost any material with a relatively non-porous surface can be handled.

Key Features of Automatic Vacuum Loaders

Vacuum Generators

Provide reliable suction for lifting materials

Suction Cups:

Cups grip and release materials when activated

Conveyors:

Seamlessly transport materials between processes

Control System:

Enables programming recipes for different materials

Sensors:

Detect and confirm material presence for precision handling

Safety Features:

Emergency stops, alarms, and interlocks

Components of Automatic Vacuum Unloaders

Placement Mechanism:

Positions material accurately as programmed

Blow-Off System:

Uses air to safely release materials

Stacking Platforms:

Neatly organizes unloaded items

Reject System:

Removes defective pieces from line

ESD Protection:

Prevents electrostatic discharge of electronics

Cycle Counter:

Tracks throughput and material flow

Benefits of Automatic Vacuum Loaders/Unloaders

Increased Throughput:

Continuous material flow improves output

Reduced Labor:

Less manual handling lowers costs

Damage Prevention:

Secure vacuum hold protects delicate items

Precision Handling:

Accuracy and repeatability from automation

Flexibility:

Interchangeable tooling for varied products

ESD/Contamination Prevention:

Clean handling minimizes risks

Improved Ergonomics:

Eliminates strenuous manual tasks

Scalability:

Modular components allow incremental upgrades

Best Practices for Operation

To leverage the full potential of automatic vacuum loaders/unloaders:

Perform regular maintenance and check vacuum seals

Adjust vacuum pressure/suction cups for different materials

Optimize equipment settings and material flow sequences

Implement status and error alarm systems

Only allow properly trained personnel to operate equipment

Follow lockout/tagout procedures during maintenance

Institute thorough safety measures against potential hazards

Continuously collect and analyze performance data

Choosing the Right Automatic Vacuum Loader/Unloader

Key selection criteria:

Required throughput and capacity

Material types and sizes Production workflow integration

Available space on floor

Budget constraints

Potential for future expansion

After-sales support from manufacturer

Careful assessment of needs is important for optimal selection.

Maximizing Productivity and Efficiency

Strategies to optimize vacuum loaders/unloaders:

Position equipment near production line

Design efficient material flow patterns

Leverage automation capabilities for 24/7 operation

Use automated tracking systems for material inventory

Perform proactive preventative maintenance

Continuously monitor KPIs like availability, cycle times

Identify and address bottlenecks limiting throughput

Every percentage gain in utilization results in major productivity payoffs.

Common Challenges and Solutions

Blocked suction cups:

Inspect and clean cups regularly to remove debris.

Vacuum leaks:

Check connections and hoses; replace damaged seals.

Difficulty handling certain materials:

Adjust vacuum pressure/cups and use mechanical assists if needed.

Control malfunctions:

Restart and recalibrate; upgrade software if needed.

Material jams:

Clear obstructions, adjust conveyor gaps, reduce speed.

Addressing issues quickly maximizes production uptime.

Safety Measures and Precautions

Potential hazards associated with vacuum loaders/unloaders include:

Getting body parts caught in conveyors

Objects falling from height

Power failures causing improper material release

Vacuum system implosions from leaks

Safety precautions should include:

Restricting access with guarding and interlocks

Lockout/tagout for maintenance procedures

Prominently posted warning signs

Meeting applicable safety standards and codes

Training personnel on safe operation and risks

Future Trends

Key trends shaping vacuum loader/unloader evolution:

IIoT connectivity and data capabilities

Smarter self-diagnostics and predictive maintenance

More advanced vision systems and sensors

Robotics integration for greater automation

Modular and reconfigurable designs

Transition to cleaner electric vacuum pumps

These innovations will expand capabilities and flexibility.

Sustainability Impact

Automatic vacuum systems offer sustainability benefits:

Energy savings from reduced manual labor

Minimized product waste due to damage

Cleaner handling reduces contamination

Electric vacuum generators lower emissions

Improved material flow efficiency reduces waste

As stakeholders prioritize greener practices, these advantages will be increasingly valued.

Specification of LD 330V / 460V Automatic Vacuum Loader Unloader

DescriptionLoading of PCB bare boards in the SMT line.
Cycle timeApprox. 12 seconds (support customization)
Max. PCB storage capacity400pcs (0.6mm thickness board)
Power supplyAC 110/220 volts; single phase
PowerMax. 150VA
Air pressure and consumption4-6 bar; max. 30ltr/min
Transport height900 +/- 20mm (support customization)
Transport directionL to R/R to L

Dimension of LD 330V / 460V Automatic Vacuum Loader Unloader

ModelDimension
(LxWxH,mm)
PCB board size
(LxW, mm)
Magazine size
(LxWxH,mm)
Weight
(kg)
LD-330V600*1002*130050*50-445*330355*320*563130
LD-460V800*1270*130050*50-530*460535*460*563150

Conclusion

Automated vacuum loaders and unloaders enable smooth and efficient material handling critical for lean and profitable manufacturing. Their fast, secure, and reliable handling improves productivity while reducing labor and waste. With appropriate selection and implementation, manufacturers can create highly optimized material workflows to unlock maximum value. As automation technology
