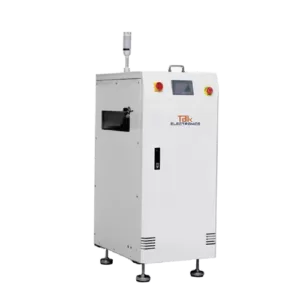

PF-330 / PF-440 PCB Flipping Machine


  • User friendly ‘soft touch’ LED control panel

  • Full closed design make sure the highest operation protection level

  • Top cover can be opened for easy access to hardware during maintenance

  • Parallel and smooth width adjustment (screw)

  • Full closed design make sure the highest operation protection level

  • Steady and precise scaling (retractable motor)

  • Full closed design make sure the highest operation protection level

  • Minimize transmission clearance between conveyor

  • Different sizes available upon request

Customization is always available, please mark down your need when contact us.

Basic Description of PF-330 / PF-440 PCB Flipping Machine

The PCB flipper is used for angle of 90 degree to 180 degree when do the rotation of double-side PCB board, which is suitable for the double-side of PCB board assembly process.

ElectronicsTalk offers the high-standard PCB flipper. When a double-side PCB board finished its front work, the rear side will need to be flipped by the PCB flipper to keep a continuous flow of SMT line.

It adopts the PLC control system, steady and precise lifting driven by servo motor, width adjustable by screw, and size can be customized. All of the core parts are imported from credible companies, ensures high-efficient performance.

Fully closed design with turn limiter grantees the highest level of safety. Different sizes are available in terms of customer specify.

Understanding PCB Flipping Machines

PCBs serve as the backbone of electronics, undergoing multiple assembly steps like solder pasting, pick-and-place, reflow soldering, cleaning, and testing. Achieving consistently precise alignment is vital at each step. Manually flipping PCBs can vary in orientation, negatively impacting quality. PCB flipping machines enable reliable and accurate 180° rotation automation.

PCB flipping machines automatically grip PCBs, rotate them 180° into the desired orientation, and then precisely place them down onto the next production stage. This allows fast and consistent alignment changes between different assembly processes, eliminating reliance on manual labor.

They are also referred to as:

PCB inverters

PCB rotators

PCB turners

Types of PCB Flipping Machines

**Pneumatic Flipping:**

Compact machines using air cylinders for flipping force.

**Servo Motor Flipping:**

Controlled servo motors enable precision speed/angle.

**Conveyor Flipping:**

Rotating conveyors turn PCB sandwiched between belts.

**Robotic Flipping:**

Industrial robots provide programmable multi-axis control.

Key Components of PCB Flipping Machines

Flipping Mechanism:

Provides the 180° rotation motion via pneumatic, servo, conveyor or robot systems.

PCB Holding:

Grippers that securely hold the PCB during flip.

Machine Vision:

Optically recognizes PCB and confirms orientation.


Buttons and touchscreen for easy operator control.

Line Integration:

Connectivity to synchronize with other equipment.

Safety Systems:

Sensors, alarms, brakes for safe operation.

Benefits of PCB Flipping Machines

Increased Efficiency:

Automated high-speed flipping improves workflow.

Enhanced Precision:

Accuracy and repeatability from programmed alignment.

Improved Quality:

Consistent alignment prevents assembly issues.

Labor Savings:

Reduces manual material handling requirements.

Seamless Integration:

Interfaces allow syncing with other equipment.

Small Footprint:

Compact profile minimizes floorspace usage.

Best Practices for PCB Flipping Machine Operation

Perform regular preventive maintenance and calibration

Adjust gripper pressure for different PCB types

Only allow properly trained personnel to operate the machine

Institute proper guidelines for safe equipment operation

Position appropriately within the production line workflow

Implement measures to prevent machine overloading

Follow recommended procedures for faults or jams

Selecting the Right PCB Flipping Machine

Key selection factors include:

Required flip speed and cycle times

PCB dimensions and weight

Production volumes and workflow needs

Available floorspace constraints

Options for automation and integration

Budget limitations

After-sales support from the vendor

Carefully evaluating requirements will ensure optimal fit.

Maximizing Productivity and Utilization

Strategies to optimize flipping machine productivity:

Position equipment appropriately within line workflow

Design efficient PCB movement patterns

Leverage automation capabilities for round-the-clock operation

Perform planned preventative maintenance

Continuously monitor performance metrics

Identify and address bottlenecks limiting throughput

Train personnel thoroughly on proper operation

Every percentage gain in utilization results in major productivity gains.

Common Challenges and Solutions

PCB jamming:

Check for obstructions; adjust gripper pressure as needed.

Positioning errors:

Re-calibrate sensors and vision system; inspect components.

Flipping stalling:

Verify power connections; inspect pneumatic/servo systems.

Machine faults:

Restart; check connections; upgrade controller software.

PCB scratches/cracks:

Adjust gripper contact areas; check for defects.

Excess vibration:

Tighten fasteners; lubricate/replace worn parts like bearings.

Promptly addressing any problems is vital for maximizing machine uptime.

Safety Measures and Precautions

PCB flipping machines can potentially pose risks like:

Getting body parts caught in machine

Electrical hazards during maintenance

PCBs or debris falling from height

Safety measures should include:

Installing physical guards and interlocks

Implementing proper lockout/tagout procedures

Ensuring easily accessible emergency stop buttons

Providing applicable personnel safety training

Following manufacturer’s instructions

Case Studies

Company A installed servo-driven PCB flipping machines to automate orientation prior to solder paste inspection. This improved inspection throughput by 20%.

Company B integrated robotic PCB flipping into their optical inspection process. This reduced human involvement while ensuring precise alignment.

Company C’s product failure rate caused by misalignments decreased from 2.8% to 0.9% after deploying pneumatic flipping machines.

Frequently Asked Questions

Q: What are the benefits of PCB flipping machines?

A: They enable fast, repeatable 180° PCB rotation for precision alignment during assembly.

Q: What PCB sizes can these machines accommodate?

A: Different models are designed to handle small to large PCB dimensions.

Q: Can flipping machines integrate with assembly lines?

A: Yes, they provide connectivity interfaces to synchronize with other equipment.

Q: How do they improve manufacturing productivity?

A: Automated fast flipping enhances workflow and minimizes human involvement.

Q: What safety features are incorporated?

A: Safety systems like guards, interlocks, E-stops, and compliance with standards.

Q: What maintenance do they require?

A: Routine lubrication, inspection, calibration, and replacement of worn parts as needed.

Q: Is special operator training recommended?

A: Yes, training helps maximize productivity and minimize safety risks.

Q: Can they handle double-sided or multilayer PCBs?

A: Yes, with adjustable holding pressure to prevent component damage.

Specification of PF-330 / PF-440 PCB Flipping Machine

DescriptionInvert PCBs (180 degree) for ¡°double sided¡± process
Cycle timeApprox. 5 seconds
Belt typeOblate belt
Power supplyAC 110/220 volts; single phase
PowerMax. 150VA
Transport height900 +/- 20mm (support customization)
Transport directionL to R/R to L

Dimension of PF-330 / PF-440 PCB Flipping Machine

(LxWxH, mm)
PCB board size (LxWxH, mm)Weight
PF-330500*786* 120050*50-445*330120
PF-400600*856* 120050*50-530*400160



With the ability to reliably automate high-speed 180° PCB rotation, flipping machines are critical for precision alignment during electronics assembly. They eliminate inconsistent manual handling and associated bottlenecks. By selecting the right flipping machine model and following operational best practices, manufacturers can achieve optimized PCB orientation for improved quality and productivity.
