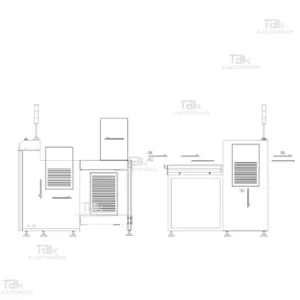

diagram buffer conveyor magazine type buffer

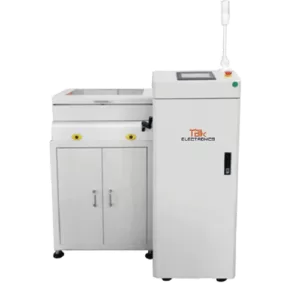

BF-250M / 330M / 390M Magazine Type Buffer

Feature

  • SMEMA compatible

  • User friendly ‘soft touch’ LED control panel

  • Fast and smooth, accurate retrieval location

  • No PCB breakage because of special pneumatic design

  • Six operation modes: FIFO, LIFO, loading, unloading, NG buffering, and by-pass

  • Top and bottom pneumatic clamps to ensure positioning accuracy of magazine rack

Customization is always available, please mark down your need when contact us.

Specification of BF-250M / 330M / 390M Magazine Type Buffer

DescriptionApplied at the lower position of AOI to store NG boards
Number of magazineUpper conveyor: 1 magazine
lower conveyor: 2 magazine
Indexing pitch10, 20, 30, 40mm (support customization)
Power supplyAC 110/220 volts; single phase
PowerMax. 250VA
Air pressure and consumption4-6 bar; max. 10ltr/min
Transport height900 +/- 20mm (support customization)
Transport directionL to R/R to L

Dimension of BF-250M / 330M / 390M Magazine Type Buffer

ModelDimension
(LxWxH, mm)		PCB board size (LxWxH, mm)Magazine sizeWeight(kg)
BF-250M1150* 1150* 120550*50-330*250355*320*563160
BF-330M1350*1350*120550*50-445*330460*400*563220
BF-390M1550*1550*120550*50-530*390535*460*563280
