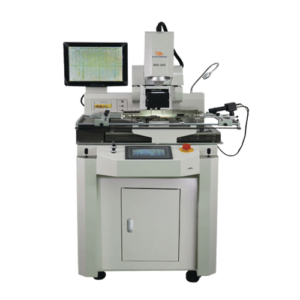

bga rework station brs 660 machine picture

BEST BGA Rework Station – BRS 650

The BEST BGA rework station of BRS-650 is a high-end model used for larger PCB size applications and equipped with more sensors to test temperature. As applicable for the larger size of the board and other strengthening features, it can fix more chips problems.

In addition, it can be suitable for the larger size of the PCB board and re-workable for various IC, 0201 or 01005 chips, and other non-standard components. And it has a 8 million pixel of camera to make a high quality optical image.

Also, adopted the Siemens PLC control system and the use of servo motor, it can maintain a stable and high efficient performance.

Customization is always available, please mark down your need when contact us.

Feature of BGA Rework Station – BRS650

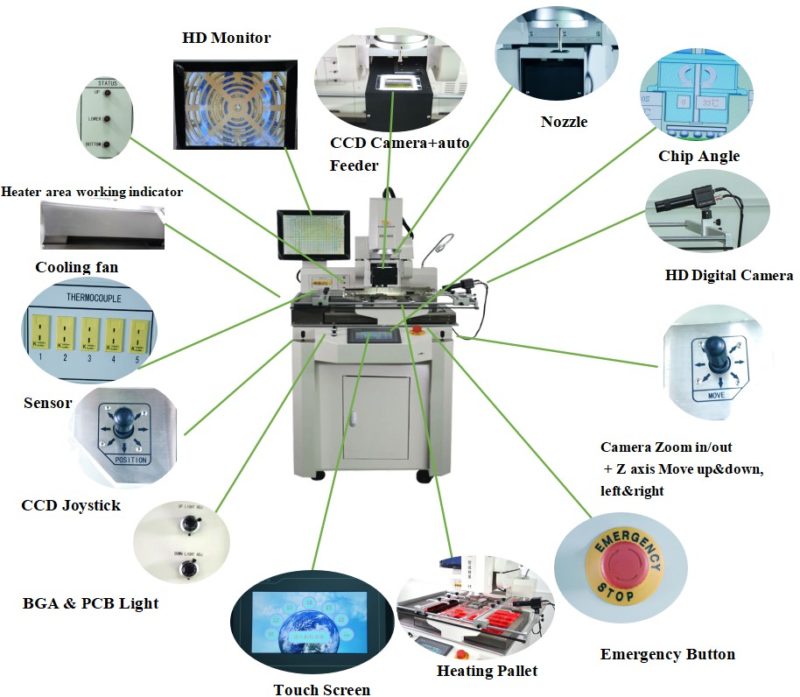

1. Machine Main Parts

  • As the BEST bga rework station, it all adopted with the high-quality main parts, which ensures a stablie and reliable working performance.
best bga rework station brs 660 feature pic machine main parts

2. Machine Software System

  • The machine adopts with PLC control system, can analyze the temperature quickly.
  • It can set different temperatures for different BGA, same PCB use same profile, which is time-saving.
best bga rework station brs 660 feature pic machine software system

3. Independent Temperature Control System

  • The maximum heating size is 660*540mm.
  • Equipped with powerful cross flow cooling fan.
  • Adopting with infrared heating area control switch

Specification of BGA Rework Station – BRS650

PCB SizeMax. L660xW540mm?Min. L10xW10mm
PCB Thickness0.3-8mm
Applicable ChipMax. 100x100mm?Min. 1x1mm£¨support customization£©
Workbench Micro AdjustFront&back +/-120mm; left&right 120mm
Temperature ControlK-type thermocouple, closed-loop control£¬temp. Accuracy reach +/- 2 degree celsius£»
PCB Position MethodV Shape or positioning hole
Mount Accuracy+/-0.01mm
Minimum Spacing0.15mm
Optical SystemOptical lens + HD industry camera (8 million)
Feeder SystemAuto feeder system
Tin Point MonitoringInstall side camera to monitoring solder ball melting process
Bottom Pre-heater PowerInfrared 6000W
Up Heater PowerHot air 1200W
Second Heater PowerHot air1200W
Total Power8200W
Maximum Load200g
PowerAC 380V; 50/60Hz
Sensor5 units

Dimension of BGA Rework Station – BRS650

Dimension (LxWxH,mm)970x700x1400
Weight (Kg)170
