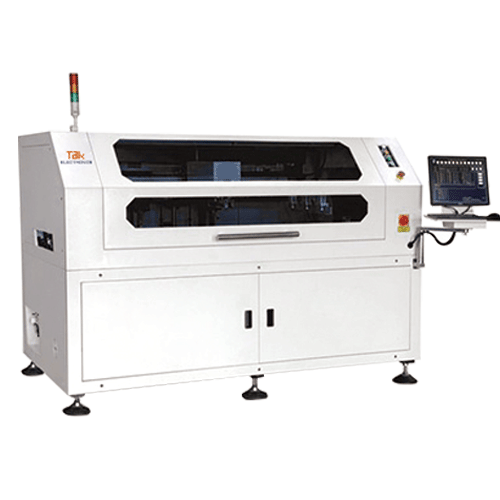

solder paste printer page 1.2m auto led printer

1.5m PCB Stencil Printer

The 1.5 meter PCB stencil printer is best suitable for large board, especially used in the 1.5 meters maximum PCB length of printing process. More than the longer printing range than other models, it has a reliable and effective mechanical performance with excellent parameters.

As compared with the LED solder paste machine, this model can have a shorter cycle time which is 12 second that excludes the time of printing and cleaning.

More importantly, this model can satisfy the customer demand that printing the LED board with the length exceed 1.2 meters.

Customization is always available, please mark down your need when contact us.

Feature of 1.5m PCB Stencil Printer

1. Platform Calibration Structure

  • Equipped with the latest three-axis UVW linking system, it is able to grantee the high accuracy calibration performance with an effective compact structure.
solder paste printer automatic stencil printer platform calibration structure

2. Electric Component System

  • With high quality electric components used, the electric arrangement is efficient and fast.
  • The electrical layout is easy to get maintenance, which ensures the safety and time saving.
solder paste printer automatic stencil printer electric component system

3. Operating Interface

  • With excellent optimized operating system, it is user-friendly and simple to learn.
  • Switching interface language between English and Chinese by only one click, it also has the function of fault recording, data storage, diagnosis analyzing.

Specification of 1.5m PCB Stencil Printer

ModelSP-1500
Screen Frame Min. Size1100x300mm
Screen Frame Max. Size1800x750mm
Screen Frame Thickness25-40mm
PCB Board Min. Size80x50mm
PCB Board Max. Size1500x350mm
PCB Thickness0.4-6mm
PCB WarpageLess than 1%
Transport Height900 +/- 40mm
Transport DirectionL to R, R to L; L to L, R to R
Transport SpeedMax.1500mm/S (Programmable)
PCB Positioning Support SystemMagnetic Pin/Support block by hand/Up-down table adjustment
PCB Positioning Clamping SystemElastic Side Clamp/Z Directional Press
Cleaning SystemDry, wet, vacuum (Programmable)
Table Adjustment RangesX: +/- 10mm; Y: +/- 10mm; Theta: +/- 2 degree
2D Solder Paste InspectionStandard configuration
Power InputAC:220 +/- 10%, 50/60HZ 3KW
Control MethodPC control
Printing Parameter
Squeegee TypeStainless steel (Standard), Plastic
Substrate Separation Speed0.1 - 20mm/sec (Programming)
Squeegee Speed6-200mm/sec
Squeegee Pressure0-15Kg (Air pressure control)
Squeegee Angle60 degree/ 55 degree/ 45 degree
Repeat Position Accuracy+/- 0.015mm
Printing Accuracy+/- 0.03 mm
Cycle TimeLess than 12s (Exclude Printing & Cleaning)
Product ChangeoverLess than 5Min
Air Required4.5-6Kg/Square centimetre

Dimension of 1.5m PCB Stencil Printer

Dimension (LxWxH, mm)2500x1200x1500
Weight (Kg)1800
